Brand: Eurocrane
Characteristic: Bridge Crane
Status: New
Place Of Origin: China
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Packaging: Wooden Case/Wooden Pallet/Bareness
Productivity: 3000 sets per year
Transportation: Ocean
Place of Origin: China
Supply Ability: 3000 sets per year
Certificate: ISO9001/ISO14001
HS Code: 84261120
Port: Shanghai,Tianjin
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Description of Paper Mill Crane:

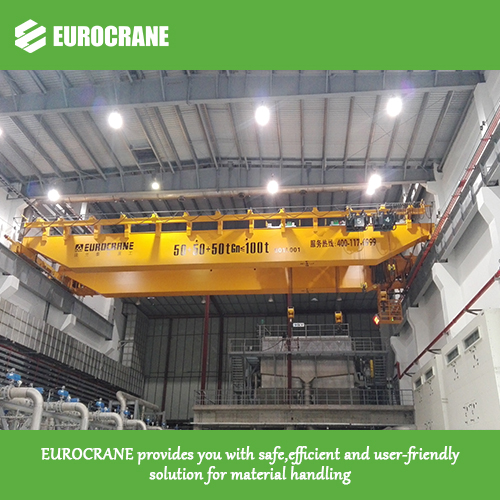

This double girder bridge crane is our application in papermaking. Papermaking industry has the characteristics of high humidity and frequent loads. Eurocrane’s lifting solutions for the paper-making industry are based on our long-accumulated experience of the paper-making industry. We know production process well, consider special operating environments, and introduce brand-new design concepts of safety and reliability so as to help paper-making customers create lasting value.
Features of Papermaking Industry
High humidity and frequent loads
Eurocrane’s hoisting equipment is satisfactory to varied hoisting applications in the paper-making industry：
1. Process heavy cranes: dry parts, rewinders, paper roll handling;
2. Maintenance cranes: wet parts, vacuum pumps, DIPs;
3. Parent roll automatic handling systems and intermediate warehouse roll automatic storage systems
4. Workshop cranes, roll grinding workshops, mono-rail electric hoists, maintenance electric hoists;
5. Maintenance services and spare parts.
Components of Industrial Crane:
a) Steel structure: main bridge beam, end carriages with wheels driven by motors.
b) Hoisting mechanism: electric Hoist mounted on main bridge beam.
c) Electrics: electric box/cables/operator.
Control method:
a) Wireless Remote Control; b) Pendent Line with Press Button; c) Cabin Control
Models
| Double Girder Type | ||||||
| Load (Kg) | Duty Class (F.E.M. Standard) | Span (m) | Lifting Height (m) | Lifting Speed (m/min) | Trolley Traveling Speed (m/min) | Crane Traveling Speed (m/min) |
| 5000 | 2m | 10.5~34.5 | 6~46 | 20 | 20 | 32 |
| 6300 | 2m | 10.5~34.5 | 6~10 | 5 | 20 | 32 |
| 1Am | 10.5~34.5 | 12~40 | 8 | |||
| 8000 | 2m | 10.5~34.5 | 4.5~97 | 12.5 | 20 | 32 |
| 10000 | 1Am | 10.5~34.5 | 4~23 | 10 | 20 | 32 |
| 12500 | 1Am | 10.5~34.5 | 9~20 | 4/0.7 | 20 | 32 |
| 16000 | 2m | 10.5~34.5 | 4.5~71 | 12.5 | 20 | 32 |
| 20000 | 1Am | 10.5~34.5 | 4.5~71 | 10 | 20 | 32 |
| 25000 | 2m | 10.5~34.5 | 5~33 | 4/0.7 | 20 | 32 |
| 32000 | 2m | 10.5~34.5 | 5.5~35.5 | 6.3 | 20 | 32 |
| 40000 | 1Am | 10.5~34.5 | 5.5~31 | 5 | 20 | 32 |
| 50000 | 2m | 10.5~34.5 | 5~23.5 | 4 | 20 | 32 |
| 60000 | 1Am | 10.5~34.5 | 6.3~23.5 | 3.2 | 20 | 32 |
| 80000 | 1Am | 10.5~34.5 | 6.5~17.5 | 2.5 | 20 | 32 |
| 100000 | 1Am | 10.5~!34.5 | 6.5~17.5 | 2 | 20 | 32 |
Product Categories : Industrial Crane > Paper Mill Crane
As a well-known professional manufacturer and service provider of cranes and material handling products, Eurocrane, dedicated to the development and research of crane and material handling technology and focusing its business on the R & D, design, manufacturing, installation and services of high-end equipment, offers full lifecycle services for its products and relentlessly pursues industrial progress to elevate industrial development by insisting on innovation, adopting new ideas and developing new products.
Eurocrane mainly has such business units as cranes, electric hoists, transmission equipment and engineering machinery components. The product line is comprehensive, the quality reliable and the performance leading. The company has achieved a breakthrough in core technology and has the capacity to manufacture core parts. The products have spread through the world, including more than 50 countries and regions and have found extensive applications in 20-plus professional fields like high-end equipment manufacturing, transportation and logistics, paper-making, energy and power, automobiles and ships, metal processing, aeronautics and astronautics, etc. The company offers services for more than 5,000 medium- and high-end customers all over the world.
